Using Exoscale Compute as a Dedicated Backup Server

Overview

This guide configures an Exoscale Compute instance to automatically back up your servers to Exoscale Object Storage (SOS). The setup uses Plakar to create encrypted, deduplicated snapshots on a scheduled interval with web UI monitoring.

Architecture

• Backup Compute: Runs Plakar and schedules backups
• Source servers: Exoscale servers to back up
• Exoscale Object Storage (SOS): Stores encrypted backups

Prerequisites

• Exoscale account with billing configured
• SSH keypair for instance access
• SSH access to source servers
• Basic familiarity with Plakar commands

Create Object Storage Bucket

Create bucket in Exoscale Portal

1. In the Exoscale portal, navigate to Storage
2. Click Add to create a new bucket
3. Configure:
   • Zone: Select region (note the name, it’ll be used to connect to the container e.g ch-dk-2)
   • Name: plakar-backups (must be globally unique)
4. Click Add

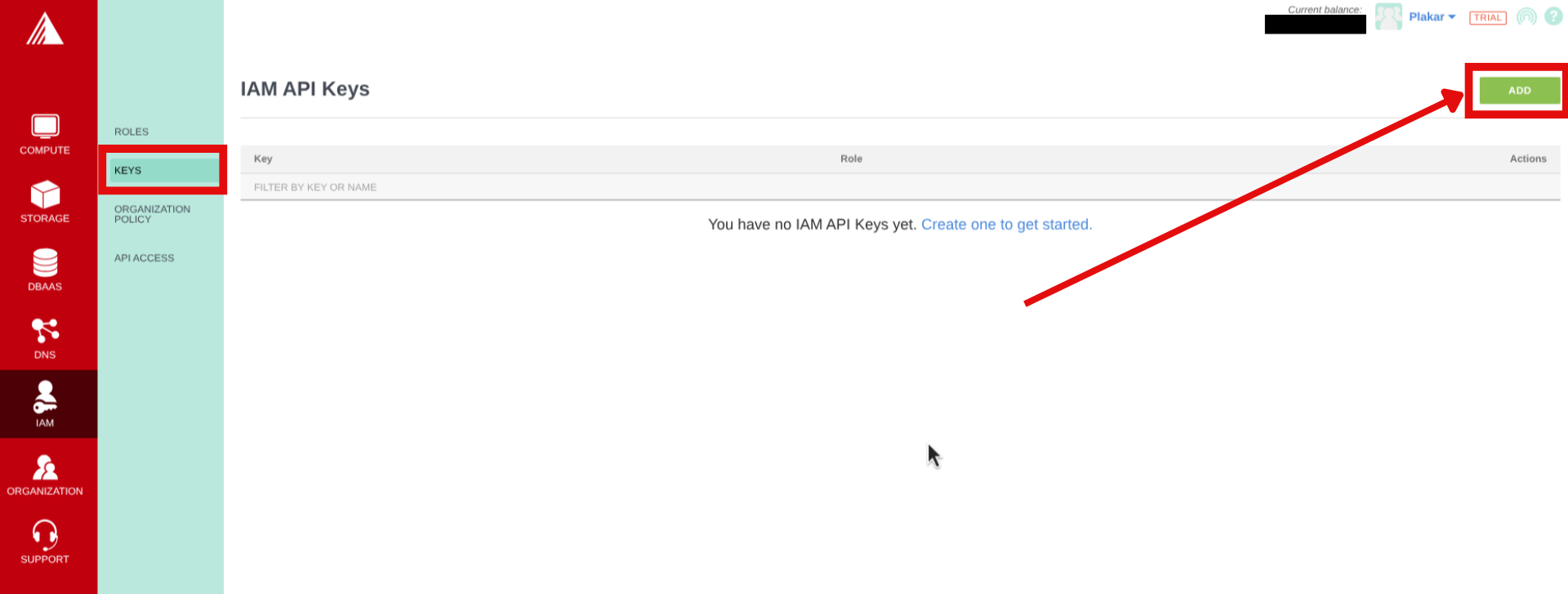

Generate IAM API Keys

1. In the Exoscale portal, navigate to IAM → Keys
2. Click on Add to create new API keys then provide and role then click Create.
3. Copy the key and secret to a secure environment (you cannot see the secret once you leave the page)

Create SSH Keypair

1. Generate SSH key locally and copy the public key:

ssh-keygen -t ed25519 -f ~/.ssh/id_exoscale -C "exoscale-backup"
cat ~/.ssh/id_exoscale.pub

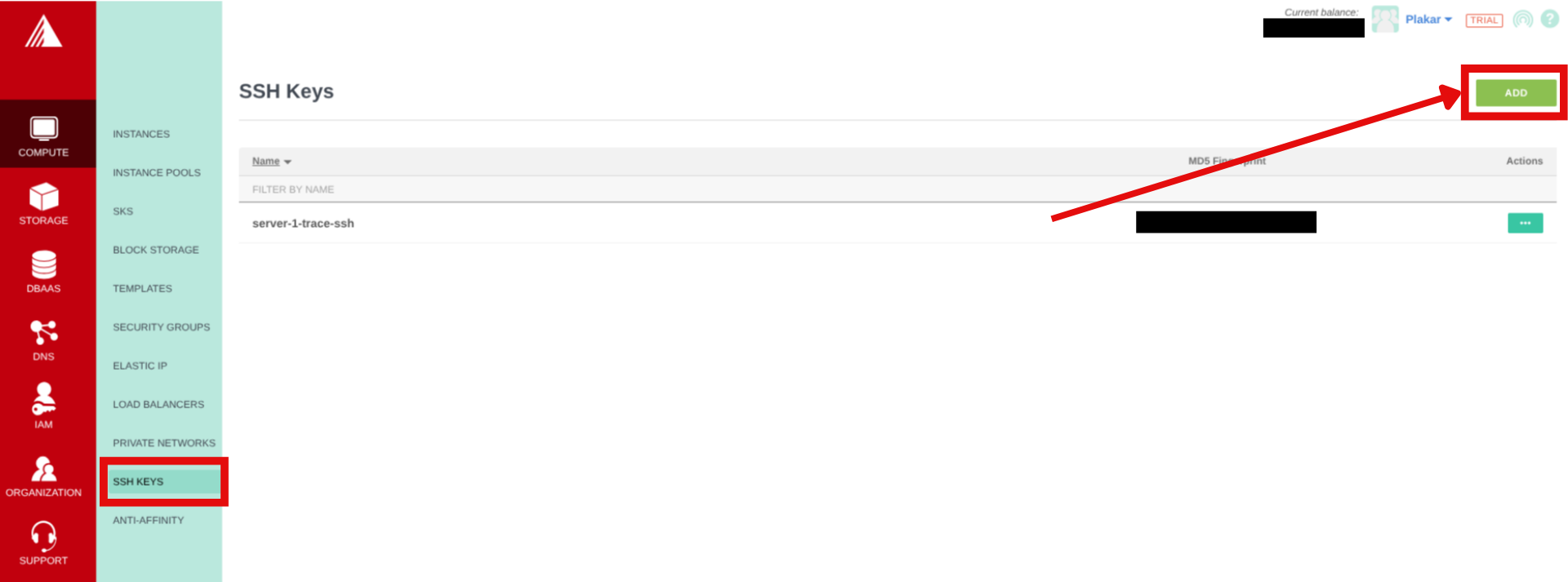

2. In the Exoscale portal, navigate to Compute → SSH Keys

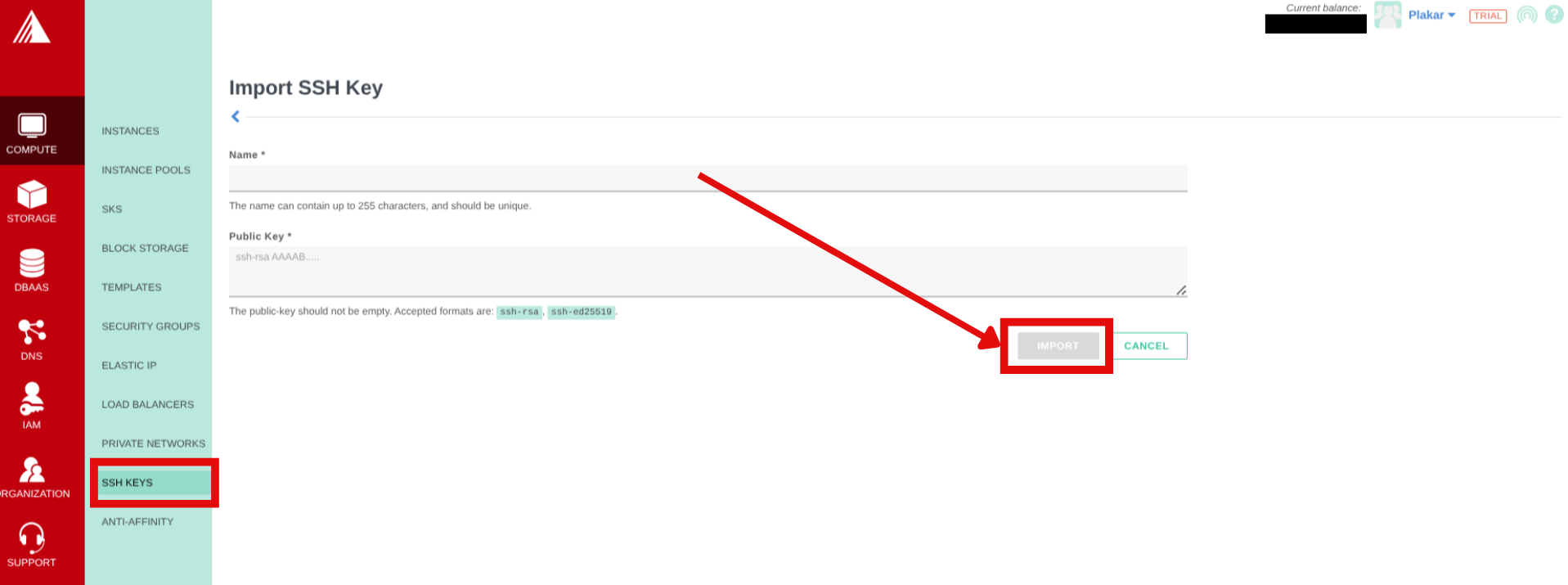

3. Click on Add then enter a name for the SSH Key and paste in the public key then click Import.

Provision Backup Compute Instance

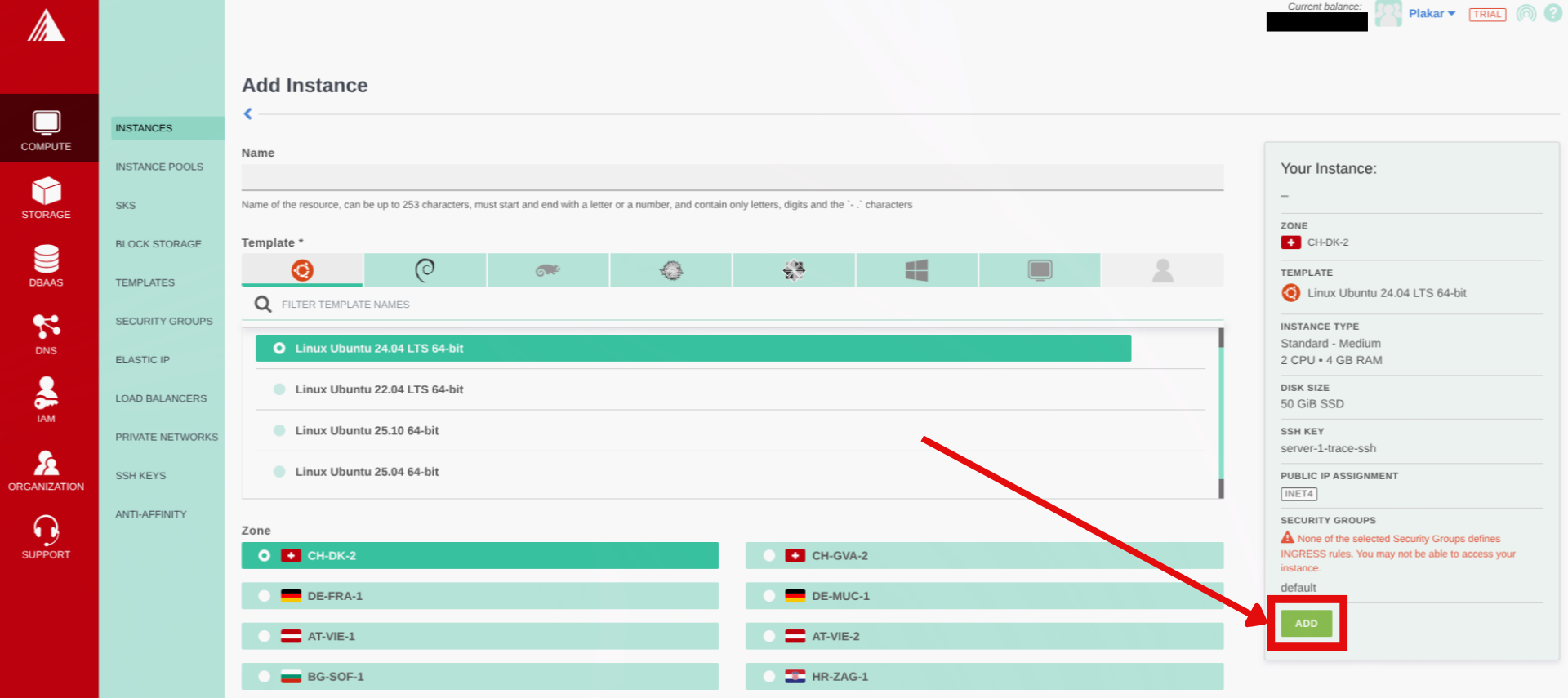

Create compute instance

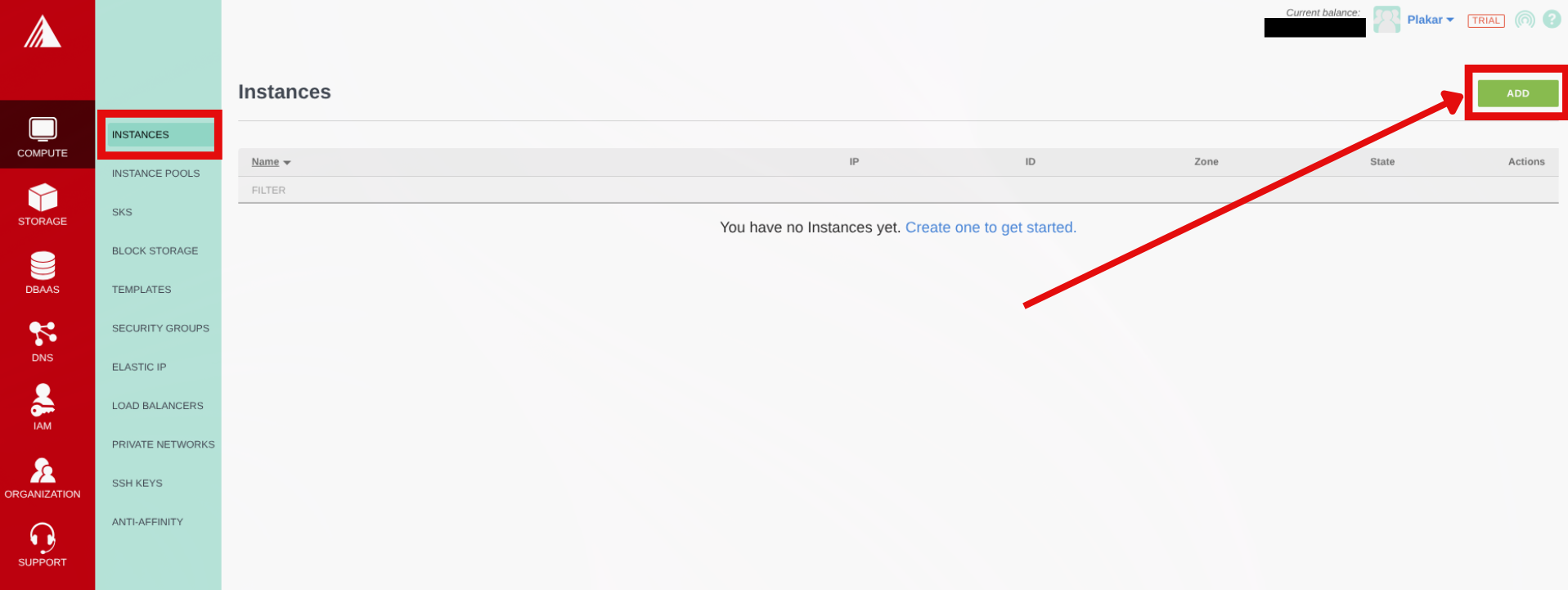

1. In the Exoscale Portal, navigate to Compute → Instances
2. Click Add
3. Configure:
   • Name: plakar-backup
   • Template: Ubuntu 24.04 LTS
   • Zone: Same as Object Storage bucket (recommended for better performance)
   • Instance Type: Small (2 vCPUs, 2 GB RAM) or any other you prefer
   • SSH Key: Select the SSH key we created before from the dropdown
4. Click Add to provision your compute

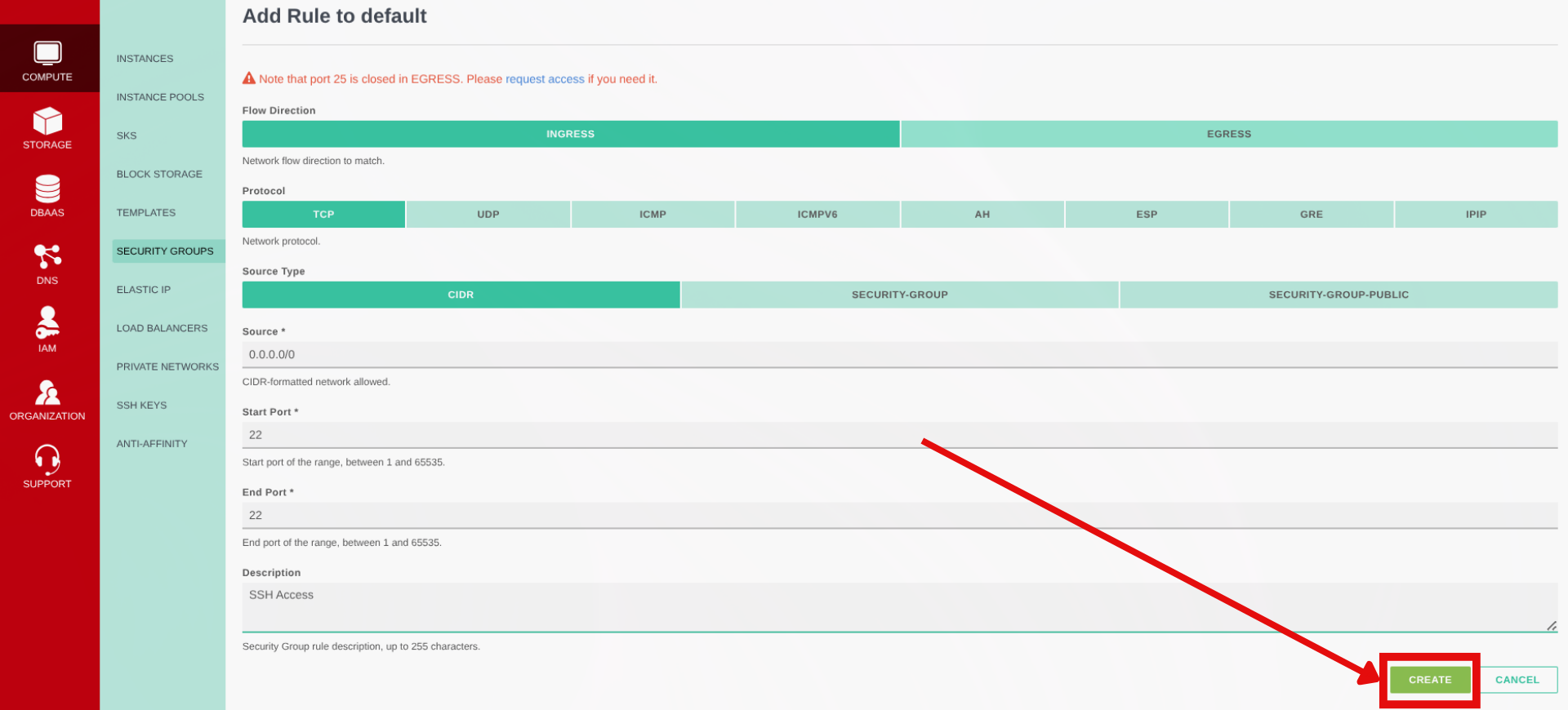

Setup security group rules

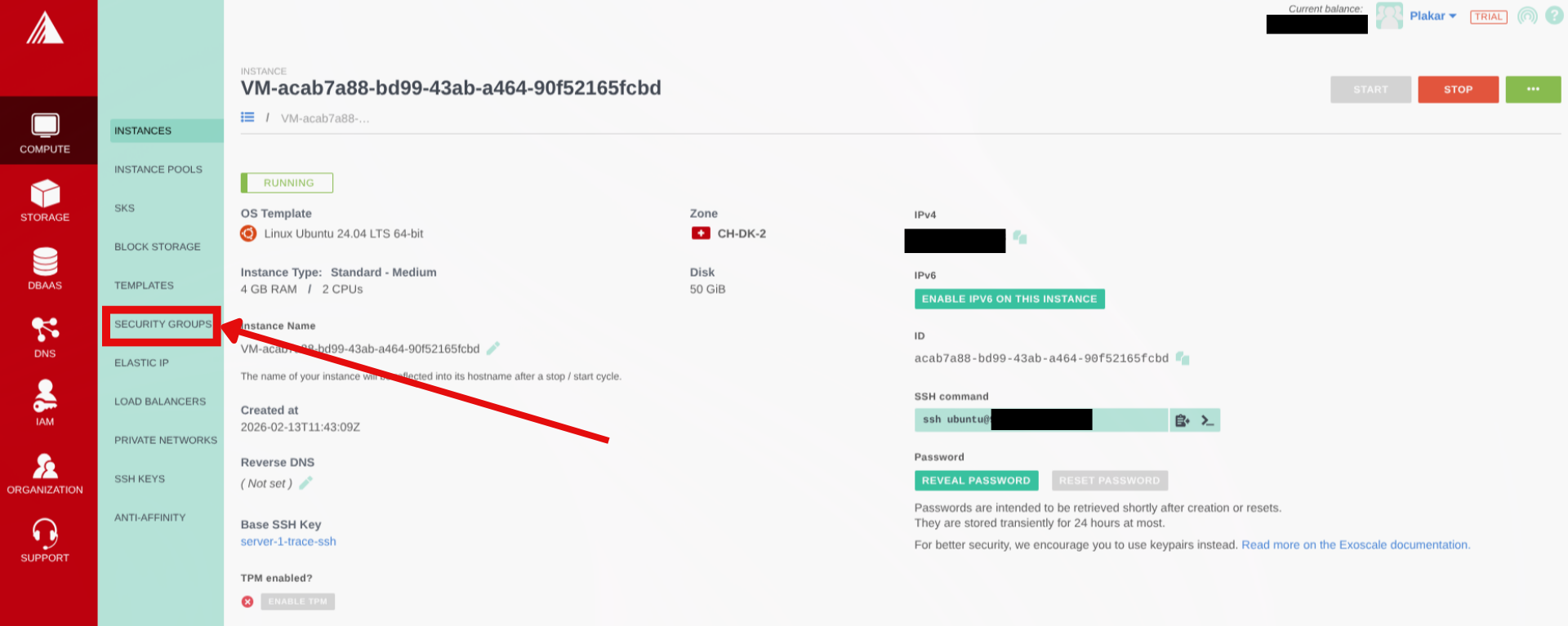

1. Once the compute is provisioned, navigate to Compute → Security Groups
2. By default the compute will be assigned the default security group, click on the actions on default then click on Details
3. On the next page click on Add Rule
4. Configure:
   • Flow direction: Ingress
   • Protocol: TCP
   • Source Type: CIDR
   • Sources: 0.0.0.0/0 allows SSH from anywhere (for better security use your IP Address here)
   • Start & End port: 22
   • A description for the rule e.g. SSH Access
5. Click on Create

Initial connection

Once instance is running, note the public IP and connect:

ssh ubuntu@<instance-ip>

Install Plakar

Install Plakar on the instance using the Plakar Installation Guide

Configure Object Storage

Install S3 integration

plakar login -email you@example.com
plakar pkg add s3

Add storage connector

plakar store add exoscale-sos-backups \
  location=s3://<SOS_ENDPOINT>/<BUCKET_NAME> \
  access_key=<YOUR_ACCESS_KEY> \
  secret_access_key=<YOUR_SECRET_KEY> \
  use_tls=true \
  passphrase='<YOUR_SECURE_PASSPHRASE>'

Replace:

• <SOS_ENDPOINT>: using the format sos-{zone}.exo.io where zone is one we selected for the bucket e.g sos-ch-dk-2.exo.io
• <BUCKET_NAME>: e.g., plakar-backups
• <YOUR_ACCESS_KEY> and <YOUR_SECRET_KEY>: From bucket API credentials
• <YOUR_SECURE_PASSPHRASE>: Strong passphrase for encryption

Passphrase

Configuring the passphrase in the store enables automated backups without prompts.

Initialize Kloset Store

plakar at "exoscale-sos-backups" create

Configure SSH Access to Source Servers

Install SFTP integration

plakar pkg add sftp

Generate SSH keys for backups

ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519_plakar -C "plakar@backup"

Press Enter for no passphrase.

Copy keys to source servers

ssh-copy-id -i ~/.ssh/id_ed25519_plakar.pub user@source-server-1
ssh-copy-id -i ~/.ssh/id_ed25519_plakar.pub user@source-server-2

Test access:

ssh -i ~/.ssh/id_ed25519_plakar user@source-server-1 'echo "Success"'

Create SSH aliases

cat >> ~/.ssh/config << 'EOF'
Host source-1
    HostName source-server-1.example.com
    User backupuser
    Port 22
    IdentityFile ~/.ssh/id_ed25519_plakar

Host source-2
    HostName source-server-2.example.com
    User backupuser
    Port 22
    IdentityFile ~/.ssh/id_ed25519_plakar
EOF

Test:

ssh source-1 'echo "Alias works"'

Configure Backup Sources

Add source connectors for each server:

plakar source add web-server-1 sftp://source-1:/var/www
plakar source add web-server-2 sftp://source-2:/var/www

Verify:

plakar source show

Test Backup

Run a manual backup to verify configuration:

# Single source
plakar at "@exoscale-sos-backups" backup "@web-server-1"

# Multiple sources
plakar at "@exoscale-sos-backups" backup "@web-server-1" "@web-server-2"

List snapshots:

plakar at "@exoscale-sos-backups" ls

Schedule Automatic Backups

For scheduler configuration and systemd service setup, follow the same steps as the OVHcloud backup server guide, replacing:

• @ovhcloud-s3-backups with @exoscale-sos-backups
• ubuntu with your actual username if different

The scheduler configuration, systemd services, and web UI setup are identical on any Linux machine.

Troubleshooting

Authentication errors

• Verify SSH keys and user permissions on source servers

Can’t connect to Object Storage

• Check S3 credentials and endpoint URL
• Verify passphrase: plakar store show exoscale-sos-backups
• Confirm bucket name and zone endpoint match

Permission denied

• Ensure SSH user has read access to backup directories

Services won’t start

• Check status: systemctl status plakar-scheduler
• View logs: journalctl -u plakar-scheduler or journalctl -u plakar-ui

Alternative UI access

• Install Plakar locally and configure the same store with Exoscale SOS credentials to access backups without compute instance connection
